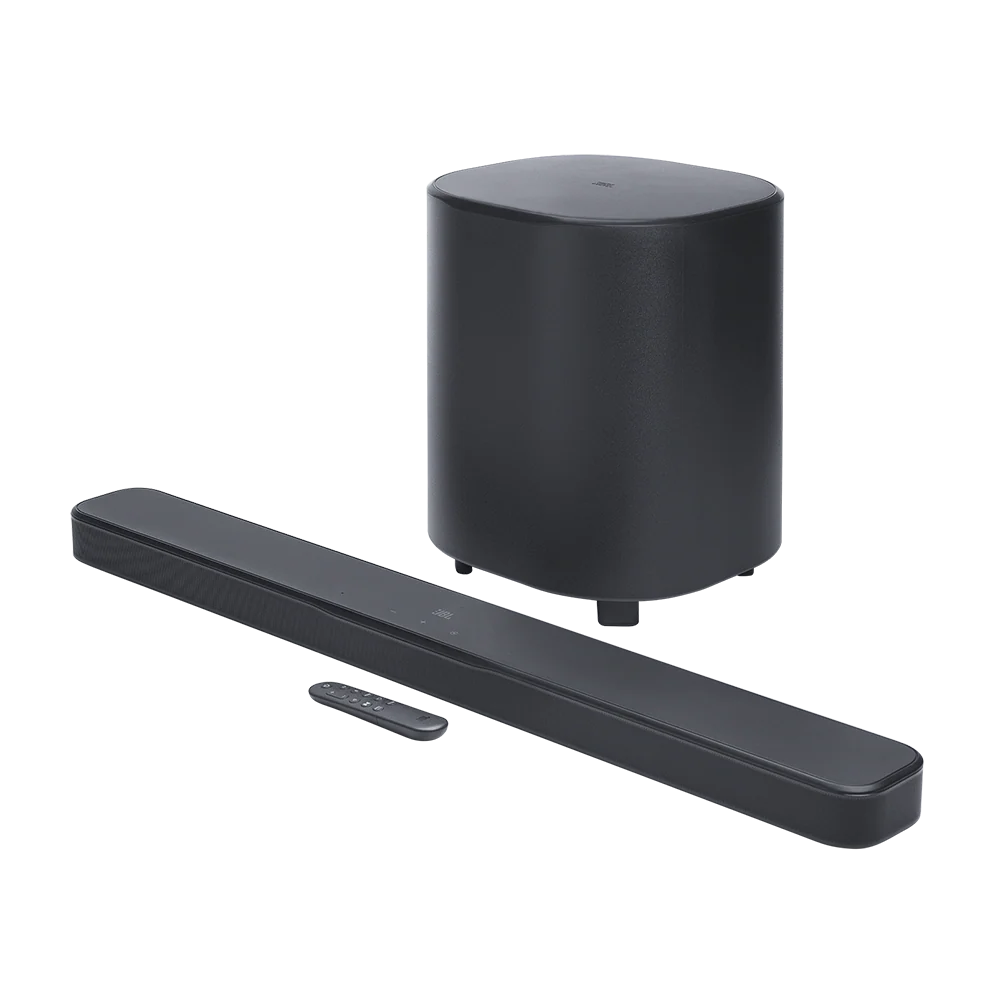

JBL Bar 500 MK2 5.1 Soundbar Wireless Subwoofer (Black)

Key Specifications

General Specifications

• Sound system: 5.1 channel
• Power supply: 100 - 240V AC, ~ 50/60Hz
• Total speaker power output* (Max. @THD 1%): 750W
• Soundbar transducer: 5x (42x80)mm racetrack drivers, 4x 0.75” (20mm) tweeters
• Subwoofer transducer: 10” (260mm)

HDMI Specification

• HDMI video input: 1
• HDMI video output (with Enhanced Audio Return Channel, eARC): 1
• HDMI HDCP version: 2.3
• HDR pass through: HDR10+, Dolby Vision

Audio Specification

• Frequency response: 40Hz - 20kHz (-6dB)
• Audio inputs: Optical, Bluetooth, USB (USB playback is available in US version. For other versions, USB is for Service only.)

USB specification

• USB port: Type A
• USB rating: 5V DC, 0.5A
• Supporting file formats: mp3

Wireless specification

• Bluetooth version: v5.3
• Bluetooth profile: A2DP v1.3, AVRCP v1.5
• Bluetooth transmitter frequency range: 2400 MHz – 2483.5 MHz
• Bluetooth transmitter power: <15 dBm (EIRP)
• Wi-Fi network: IEEE 802.11 a/b/g/n/ac/ax (2.4GHz/5GHz)
• 2.4G Wi-Fi transmitter frequency range: 2412 - 2472 MHz (2.4 GHz ISM Band, USA 11 Channels, Europe and others 13 Channels)
• 2.4G Wi-Fi transmitter power: < 20 dBm (EIRP)
• 5G Wi-Fi transmitter frequency range: 5.15 - 5.35GHz, 5.470 - 5.725GHz, 5.725 - 5.825GHz
• 5G Wi-Fi transmitter power: 5.15 - 5.25GHz <23dBm, 5.25 - 5.35GHz & 5.470 - 5.725GHz <20dBm, 5.725 - 5.825GHz <14dBm (EIRP)
• 2.4G wireless transmitter frequency range: 2406 - 2474MHz
• 2.4G wireless transmitter power: <10dBm (EIRP)

Dimensions

• Main soundbar dimensions (W x H x D): 940 x 50.5 x 104 mm / 37” x 2.0” x 4.1”
• Subwoofer dimensions (W x H x D): 325 mm x 400 mm x 325 mm / 12.8” x 15.7” x 12.8”
• Soundbar weight: 2.9kg / 6.5lbs
• Subwoofer weight: 8.1 kg / 17.8 lbs
• Packaging dimensions (W x H x D): 1020 x 395 x 490 mm / 40.2” x 15.6” x 19.3”
• Packaging Weight: 18.0kg / 39.7lbs (EMEA/UK/AU/NZ) 15.9kg / 34.9lbs (Others)



What’s in the box:

• 1x Main soundbar
• 1x Wireless subwoofer
• Remote control with 2 x batteries
• Power cords (up to 6pcs depending on region SKUs)
• 1 x HDMI cable
• 2 x L-shape wall-mount bracket (main bar)
• Quick start guide
• Safety instruction and Warranty card
• Wall mount template
