J5Create JCD554 USB4 Triple 4K Display Docking Station

This high-performance USB4® Triple 4K Display Docking Station is the first USB-C® docking to incorporate a USB4® controller from Intel®, offering compatibility with Thunderbolt™ 4 and USB4® laptops. No driver installation is required for use making it an easy-to-use docking station solution.

With up to 40Gbps of throughput and dynamic data and display bandwidth allocation for efficient display data flow, you can easily create a Triple-monitor setup with up 4K resolution using DisplayPort™ , HDMI™ or USB-C® and access data faster without affecting system performance.

Additionally, it has three USB™ 3.2 10Gbps ports (1 USB-C® and 2 Type-A) for charging or connecting peripherals, as well as a USB-C® Power Delivery port to charge your laptop and power your connected devices with up to 85W pass-through power. A USB™ 2.0 port is also included for connecting your wireless USB™ mouse or keyboard with reduced latency.



• Includes the latest Intel® USB4® controller ensures industry-leading quality

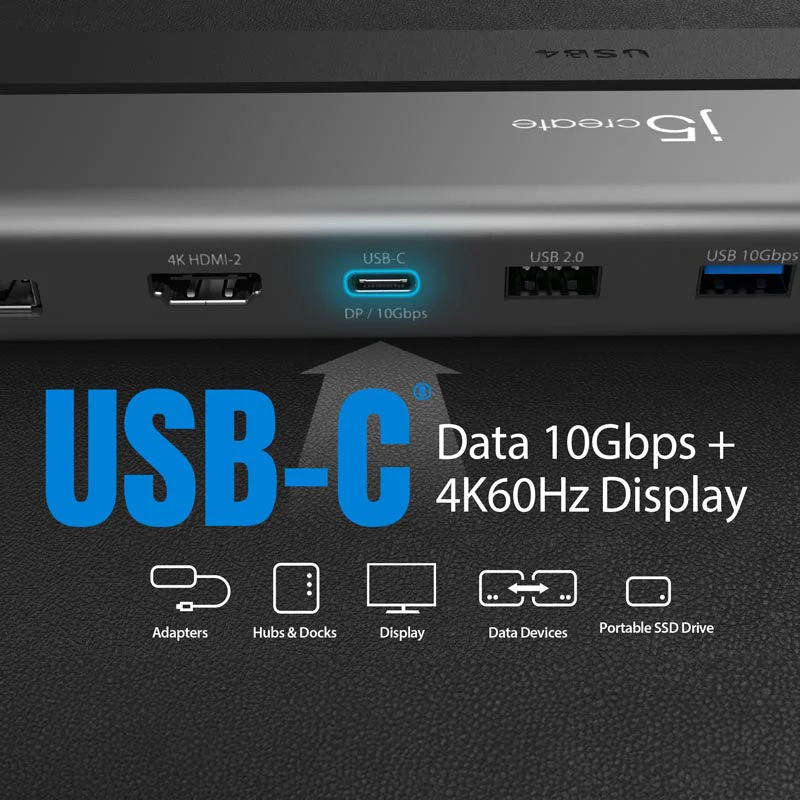

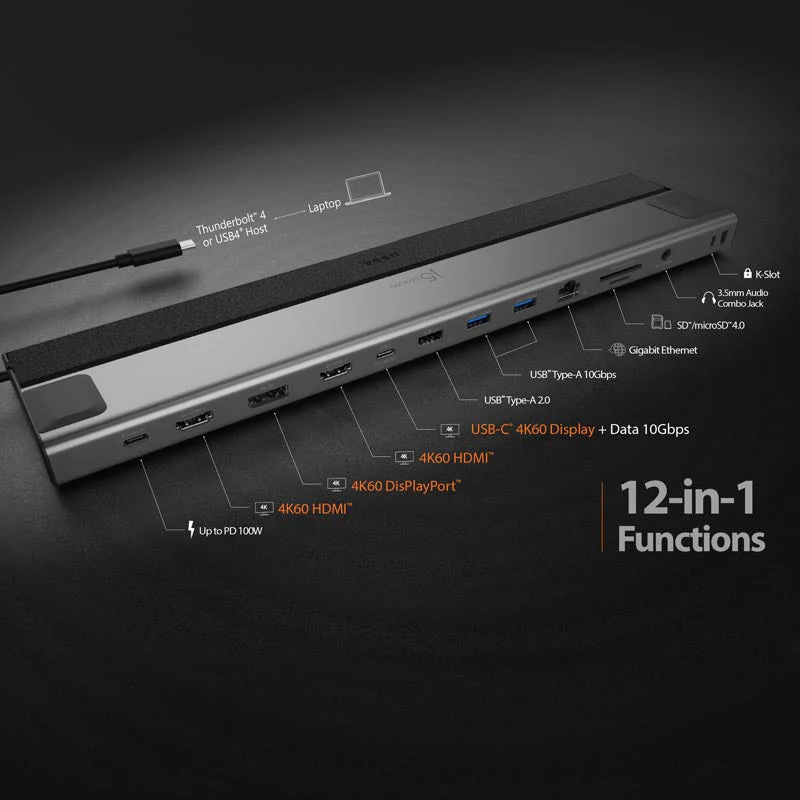

• Provides 3 USB™ ports and a USB-C® port to offer ultimate connectivity and performance
• Integrates a Gigabit Ethernet port, SD™ / microSD™ 4.0 card reader, and audio combo
• Offers up to 85W of pass-through charging
• Plug & Play, compatible with Windows® and macOS®
• Security Lock Design
• Supports up to MST three 4K displays with Thunderbolt™ 4 or USB4® host laptops

• Reference Triple Display Combinations

  • HDMI™ 1 + DisplayPort™ + USB-C® (DP™ -Alt)
  • HDMI™ 1 + DisplayPort™ + HDMI™ 2
    *Mac® systems do not support MST, may only supports mirror screen on some external displays
    *Also supports other USB™ 3.2 host laptops and lower resolution monitors/displays
    *Supports DSC maximum resolution: Triple 4K60Hz monitors/display
